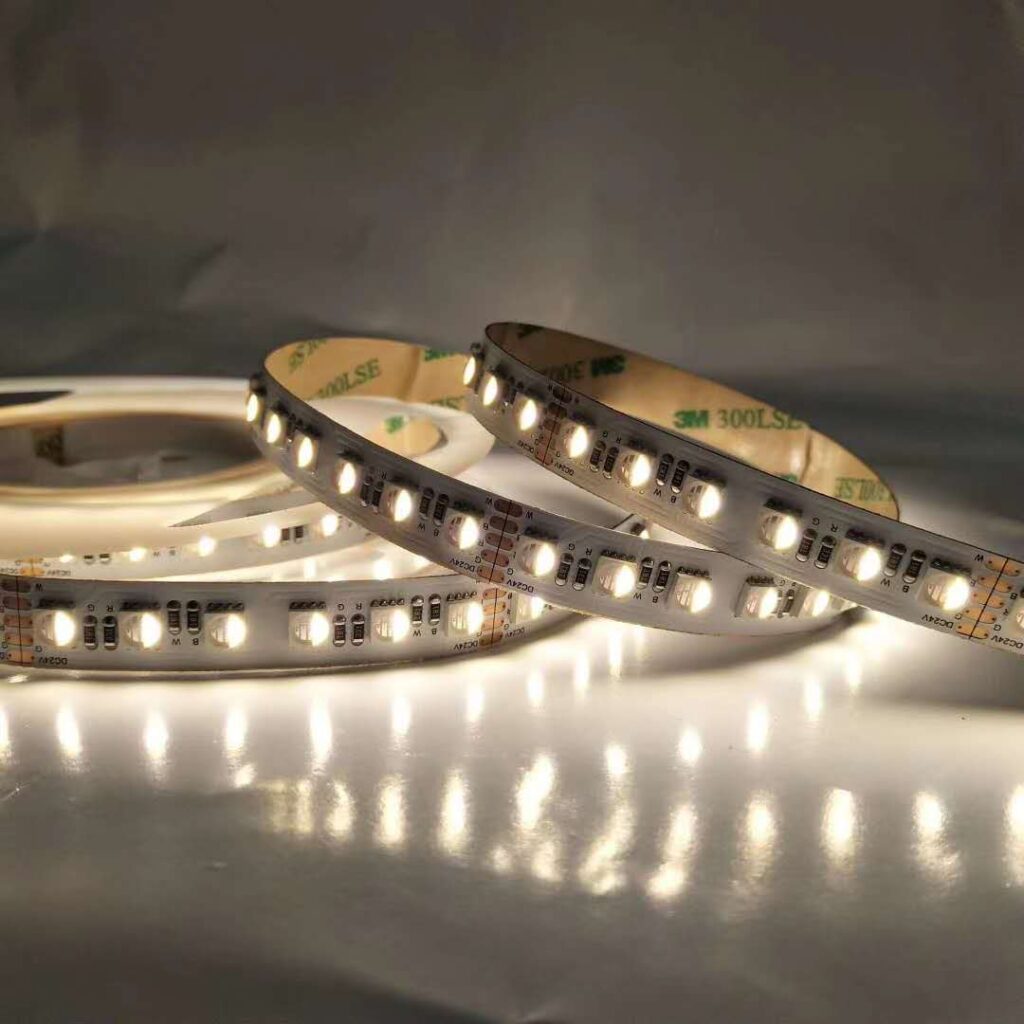

Dc12V 10mm RGBW 4in 1 5050 flex LED Strip 60leds/m

10mm12vrgbwledstrip
Products Inquiry

Product Details

Dc12V  10mm width RGBW 4in 1 5050 flex LED Strip  60leds/m



specification

RGBW led chip is the new chip,which have R,G,B,W four color chips inside one 5050 SMD LED.

The white color is much puerer and higher brightness.Can be controlled by wifi remote and cell phone(Android ,IOS).

Change any color and dimmable as you want at any time.Can be DC12V,D

60   leds  LEDs per meter.

RGBW(White coloe insde could be warm white:2800-3200K,nature white:4000-4500K,pure white:6000-6500K. )

LED Type: SMD 5050 RGBW

Color: warm white, white, nature white

LED Quantity:  60  leds/Meter,

View angle:120°

PCB width: 10MM

Working Input Voltage: 12V

Drive Mode: Contant Voltage

Description

This is a PWM control RGB color LED strip without Pixel
SMD RGBW 5050 LEDs ,

5meters/reel, 12mm PCB width
The cutting unit length is 50mm(12V), or 100mm(24V) per section optional
The PCB is made by 2 Ounce 35um  thick copper
All soldering Pads are very large, allowing you to easily cut and reconnect
DC12 constant voltage operation
Both ends have 4pin bare wires for powering
3M tape attached on backside of FPC

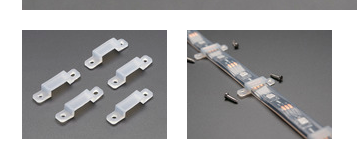

Installing : non-waterproof: with 3M adhesive on back side for sticky; waterproof: screw+silicon clip, or 3M adhesive back side.





Product details

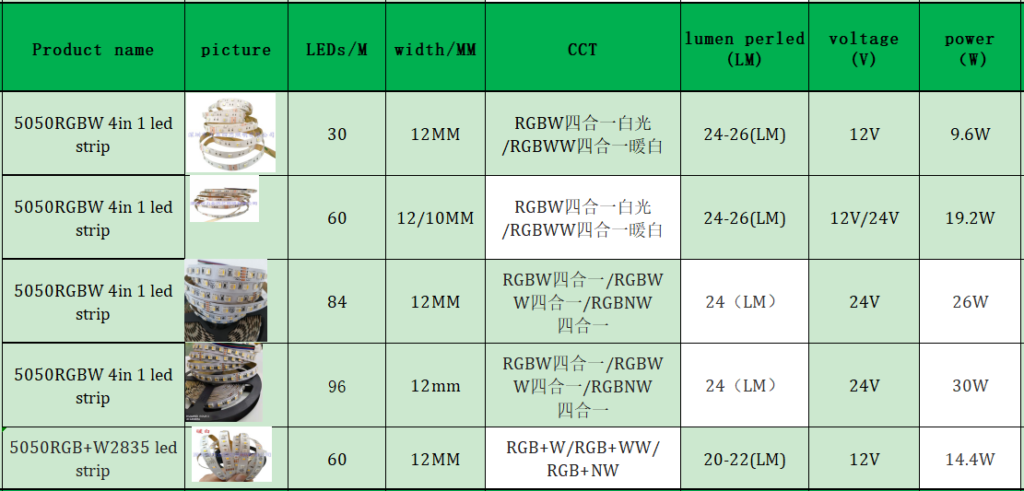

 There are many rgbw type led strip optional as follow

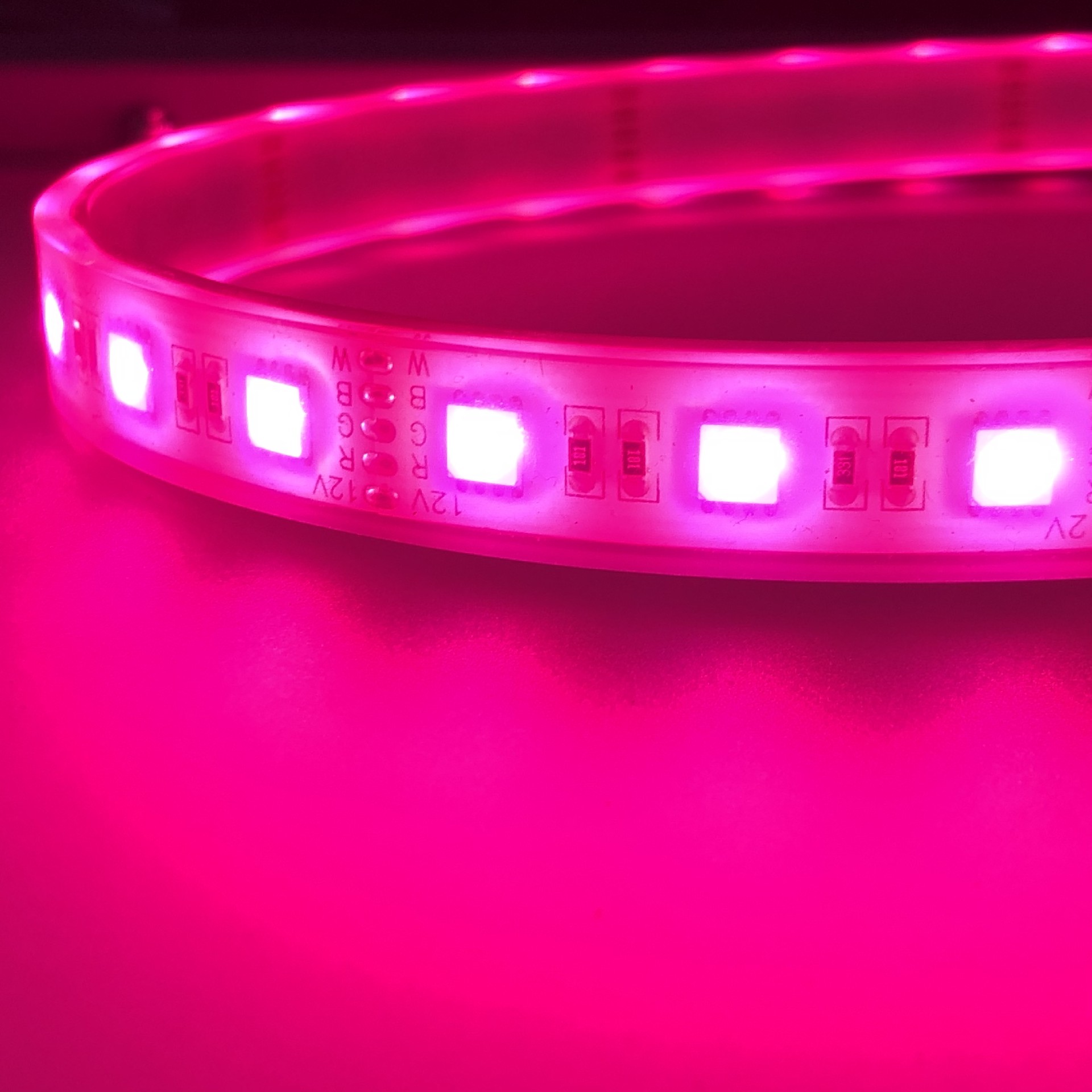

waterproof Ip68

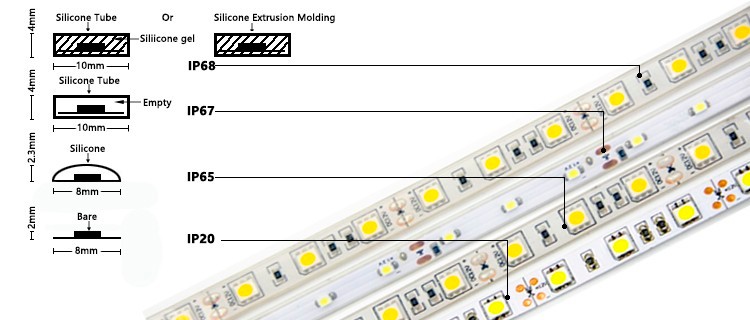

Waterproof Rate:

IP20: Non-waterproof with 3M sticker on the back,

IP65: waterproof is silicone gel or epoxy on the surfacewith 3M sticker on the back,

I67: silicone tube

I68: silicone glue inside the silicone tube

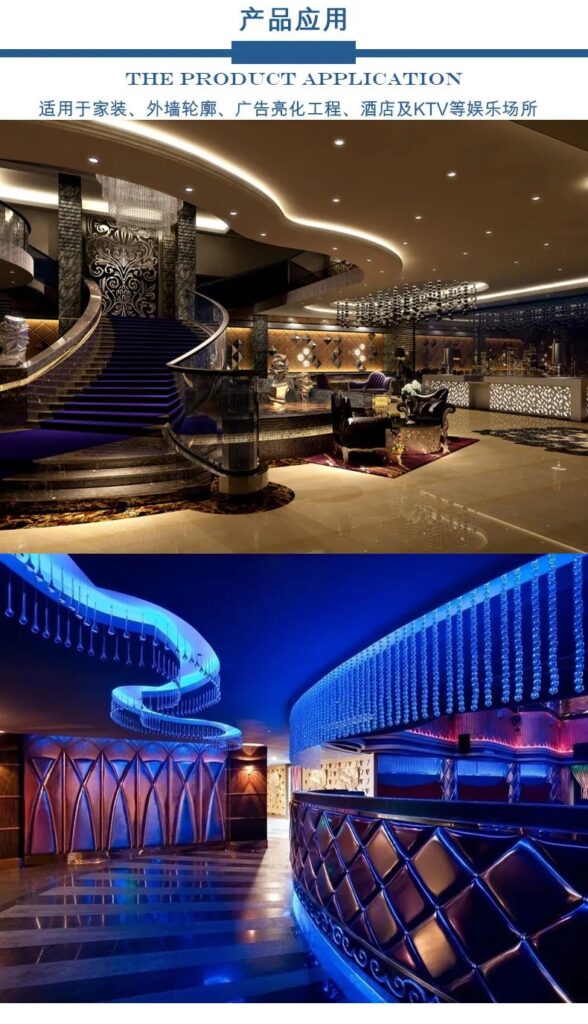

Application:

•Widely used for home decoration use, hotels, clubs, shopping malls

•Architectural decorative lighting, boutique atmosphere lighting

•Extensively applied in background lighting, concealed lighting, channel letter lighting

•Emergency & security lighting, advertisement sign lighting

•Decorative lights for holiday, event, show exhibition

•Applicable for automobile and bicycle decoration, border or contour lighting

Remark

Do not use any acidic, alkaline adhesive fixing Product

It is prohibited to make products with a hard object collision,
friction
Do not use your fingers to press LED
Don’t make positive and negative reversed
Don’t install when product is working
Installation, repair and maintenance must be made by
professional Person
Before you use them make sure the power supply voltage
to meet the requirements and wire connection correctly

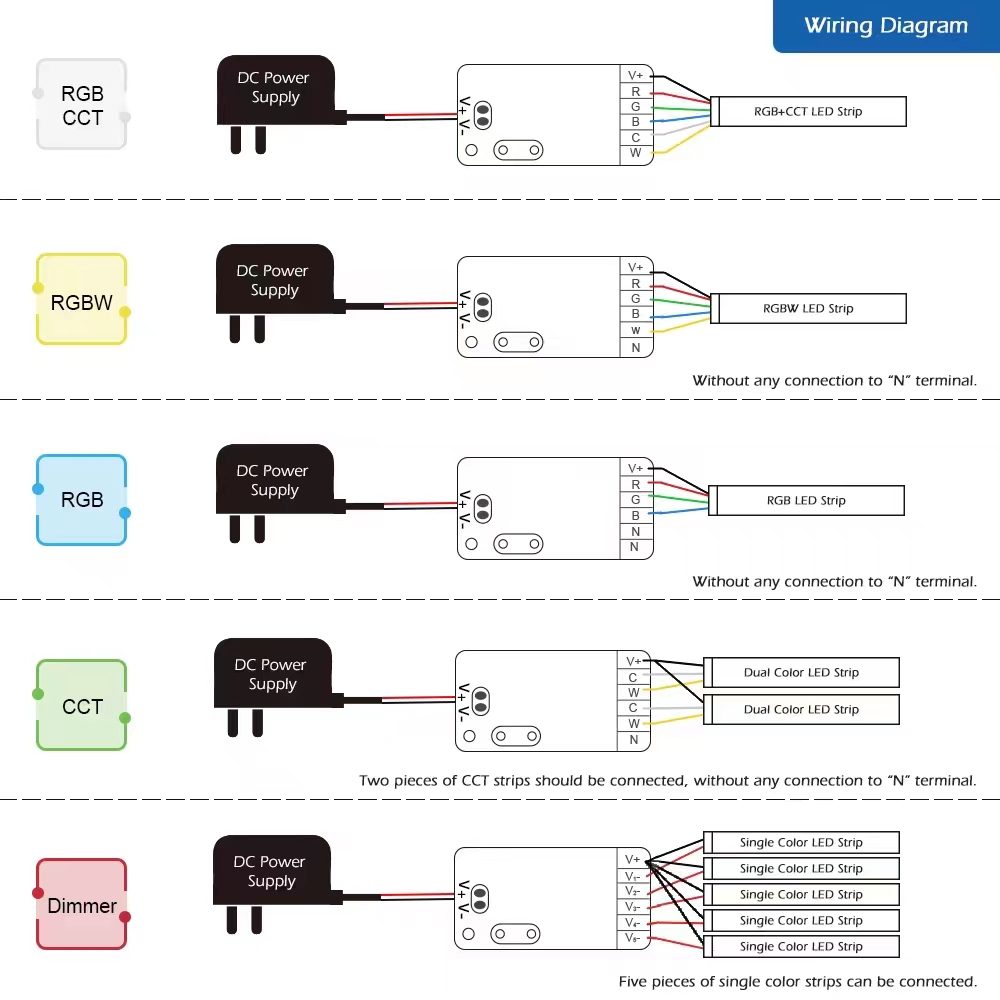

wiring chart
