Dc12V 3D 360 View SPI Vertical RGB led Tube 30 32 48 60 72 pixels per meter

3Dpixelledtube
Products Inquiry

Product Details

Dc12V 3D 360 View SPI Vertical RGB led Tube

There is 30 32 48 60 72 pixels per meter optional ,

there is  15mm 20mm  25mm 30mm  40mm dimater optional too

Product Parameter:

P/NLED TypeDiamter Size(mm)PixelVCCPower of each ledProtocol
MCD per LEDIP
RL-bar-ws2811-5050RGB-30/32/348/60/72-12V5050 smd  RGBD40/30/20/15/30/32/48/60/72DC12V0.24WattSPI
R800/G2100/B480IP65

Features:

1.This  SPI Control LED Tube designed by clear PC tube,

2.The whole tube had ws2811 IC chipet ，belong to SPI control,
3.  supper bright RGB  SMD RGB LED ,
4.Both side make it 360 viewing,
5.Each tube included 1pcs eye hook for installation,
6.Every LED tube attached a  waterproof 4Pin connector (black color),
7.The length of connector 20cm,4Pin 20AWG copper wire in white PVC,(customs length available)
8.The Tube with female and  male 4pin connector, can connect next LED  Tube easily.
9.The diameter is tube is 30mm (we also offer 20mm  15mm  40mm  diameter size),
10.Avaliable size : 50cm & 100 cm&150cm&200

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club

6. Outdoor building,fridge

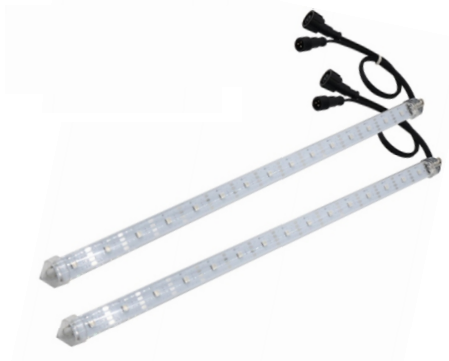

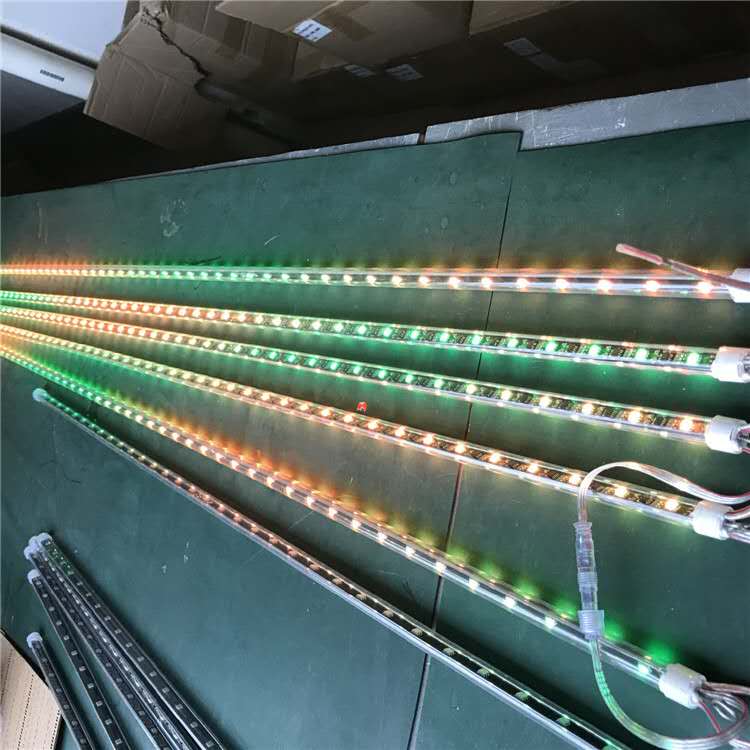

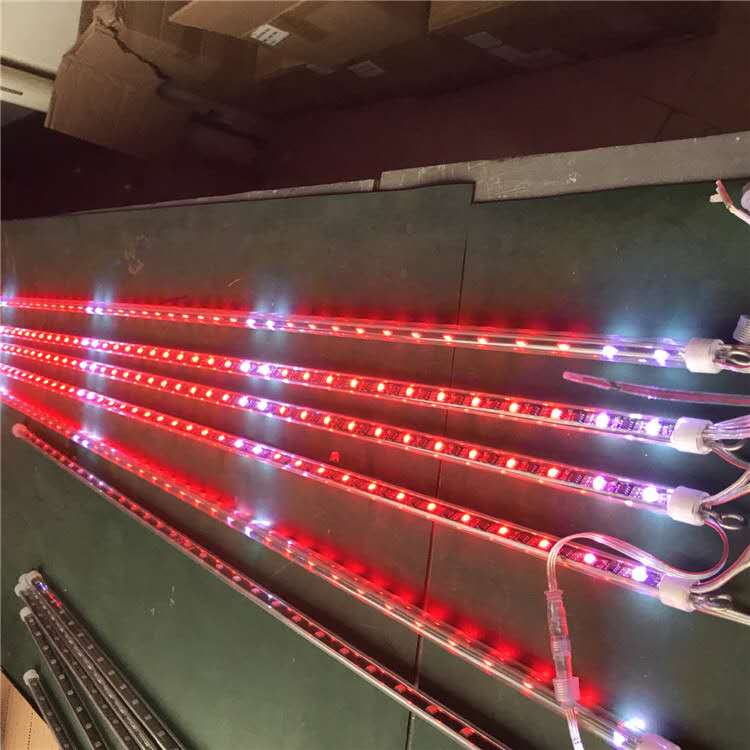

Picture:

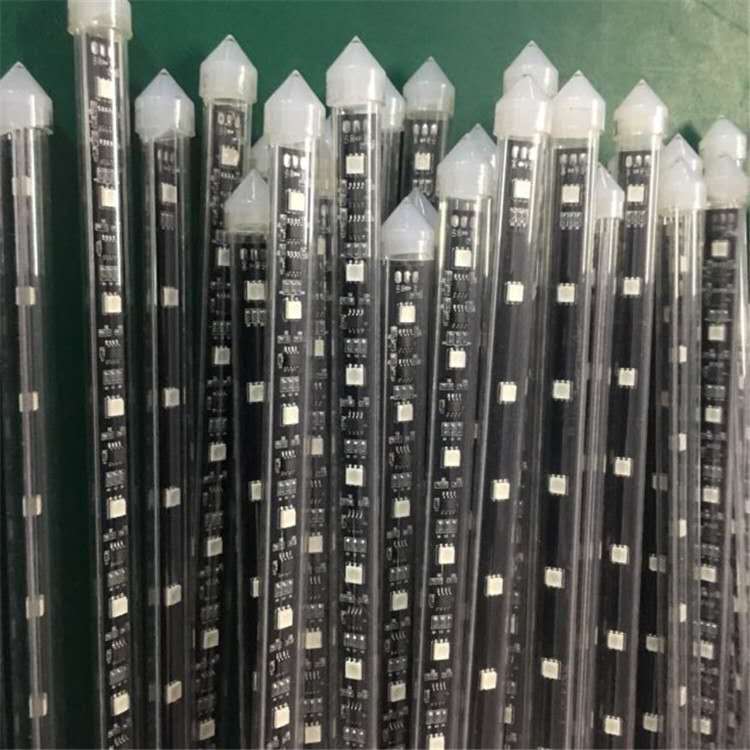

there is milky white and clear and frosted shell for the 3D 360 viewing pixel led tube

360 viewing pixel led tube.png

YouTube's  Video

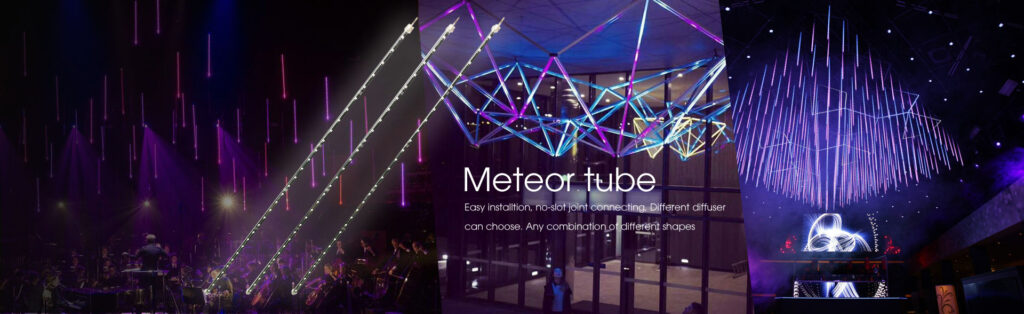

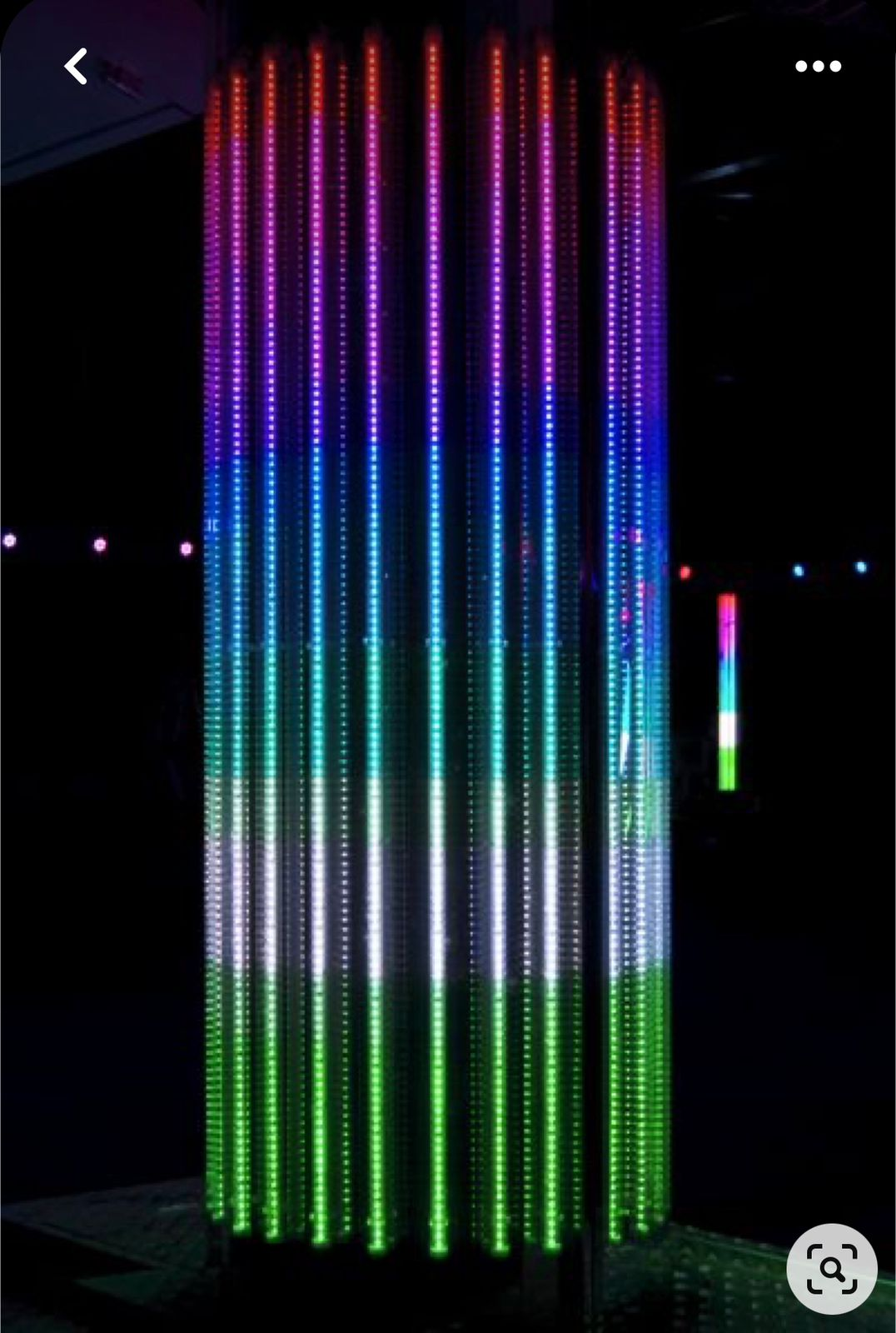

application

https://www.rose-lighting.com/rose-lighting-12v-360-viewing-pixel-led-tube-light-up-the-exhibition-center-in-shanghai-china/

led tube.png
