220V dmx512 Pixel LED Bar 4Pixels 24led/M 36Watt/M

220V  dmx512 Pixel LED Bar 4Pixels 24led/M 36Watt/M

Product Parameter

- Product type: Rigid LED Pixel Bar

- Gray level: 256

- Input:  220V

- Viewing angle: 120°

- Signal: dmx512 (4pixels  12channels/meter)

-IC chipset: ucs512kl( auto set address when power on )

- LED type: Black SMD5050 Epista Brand

- LED color: Full color RGB

- LEDs/ICs QTY: 48LEDs/ 4pixels/M

- Power: 36W

- Color temperature: R:620-625nm G:515-520nm B:465-470nm

- Lumens: 2000-2500MCD/LED

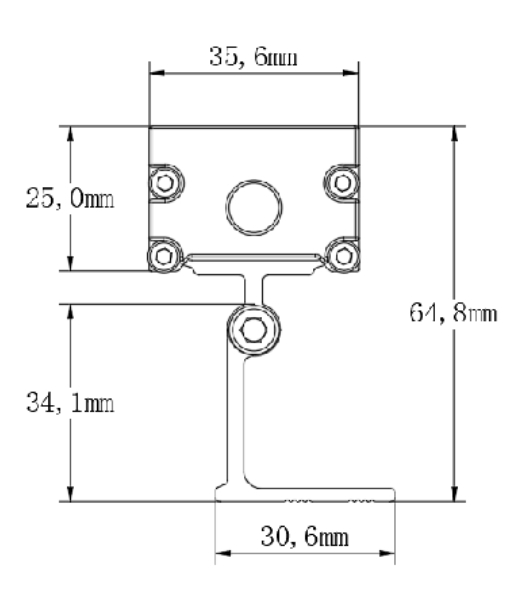

- Bar Size: W23*H45mm

- Lenght: 0.5M or 1.0 Meter are available OEM/ODM

- Lifetime: 50,000+ hours

- Mode of connector: 5Pins  Connector

- Waterproof IP65

-auto write address when power on

Description

the board designed by 48pcs high quality 3535 RGB LED and 24V DC operation,this makes the installation much easier and no need put
lots of power cable.
Each tube included 2pcs Aluminum clips (without screw) it's cannot adjust the angle but it's move-able horizontal
Each tube attached a pair of wateproof 5Pin connector output from bottom side(middle side0 ,

this could achive No-slot joint

the plug at the back

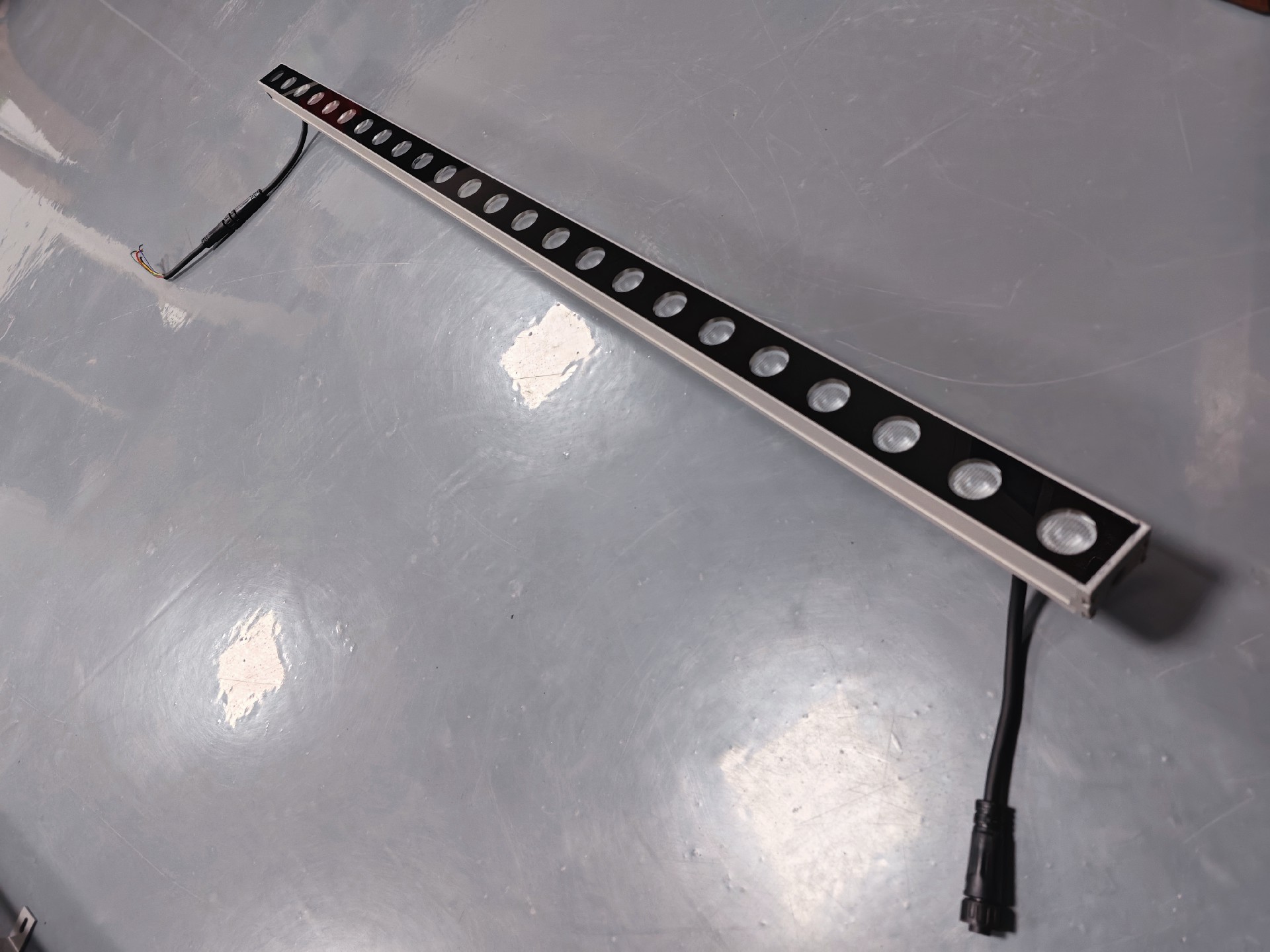

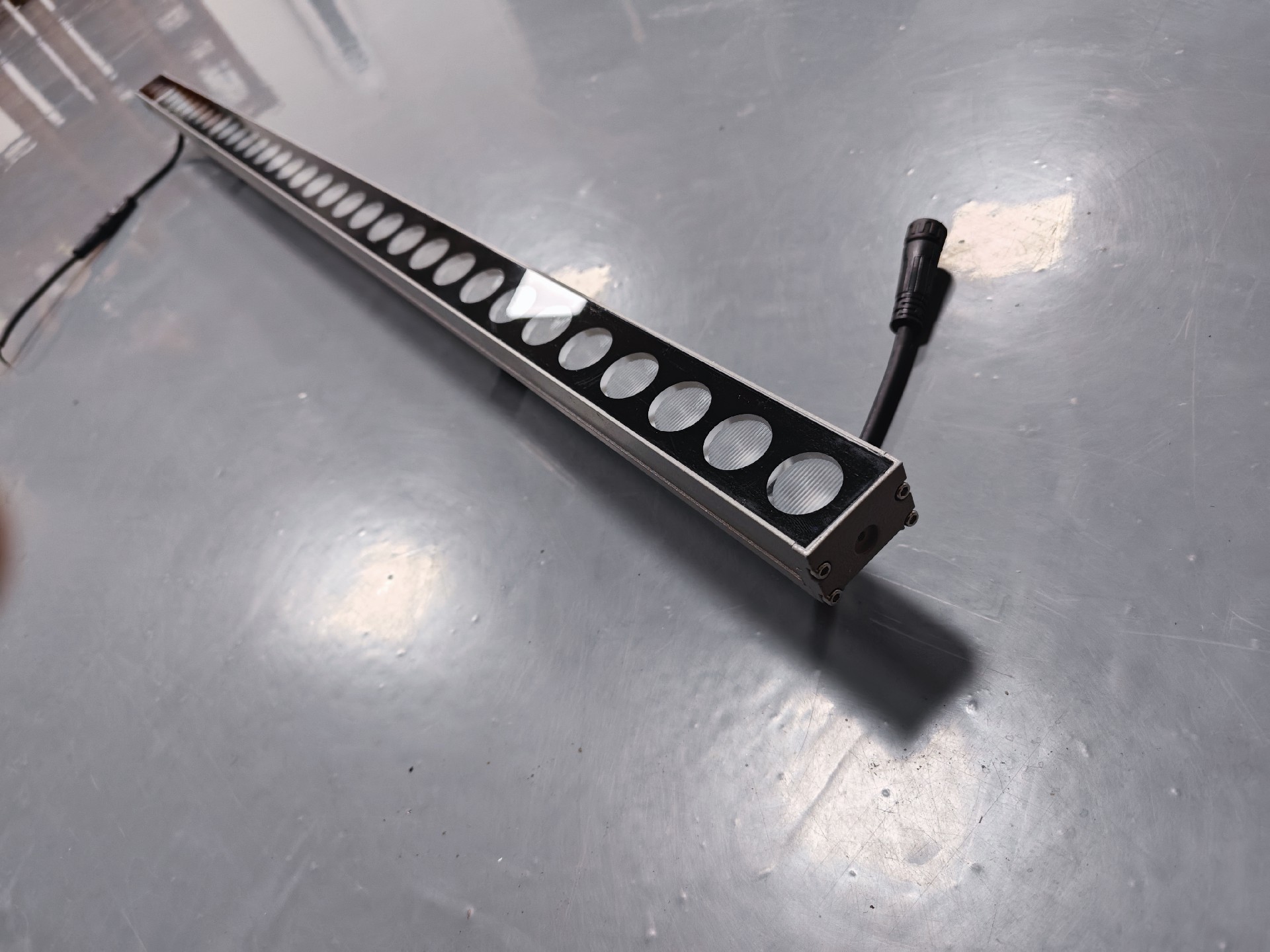

Pictures details

packaging

1meter per pcs

35pcs per cartoon -cartoon size 1030mm*190mm*210mm GW:21kg

Download the similar led bar catalog here please

linear led bar catalog.pdf
